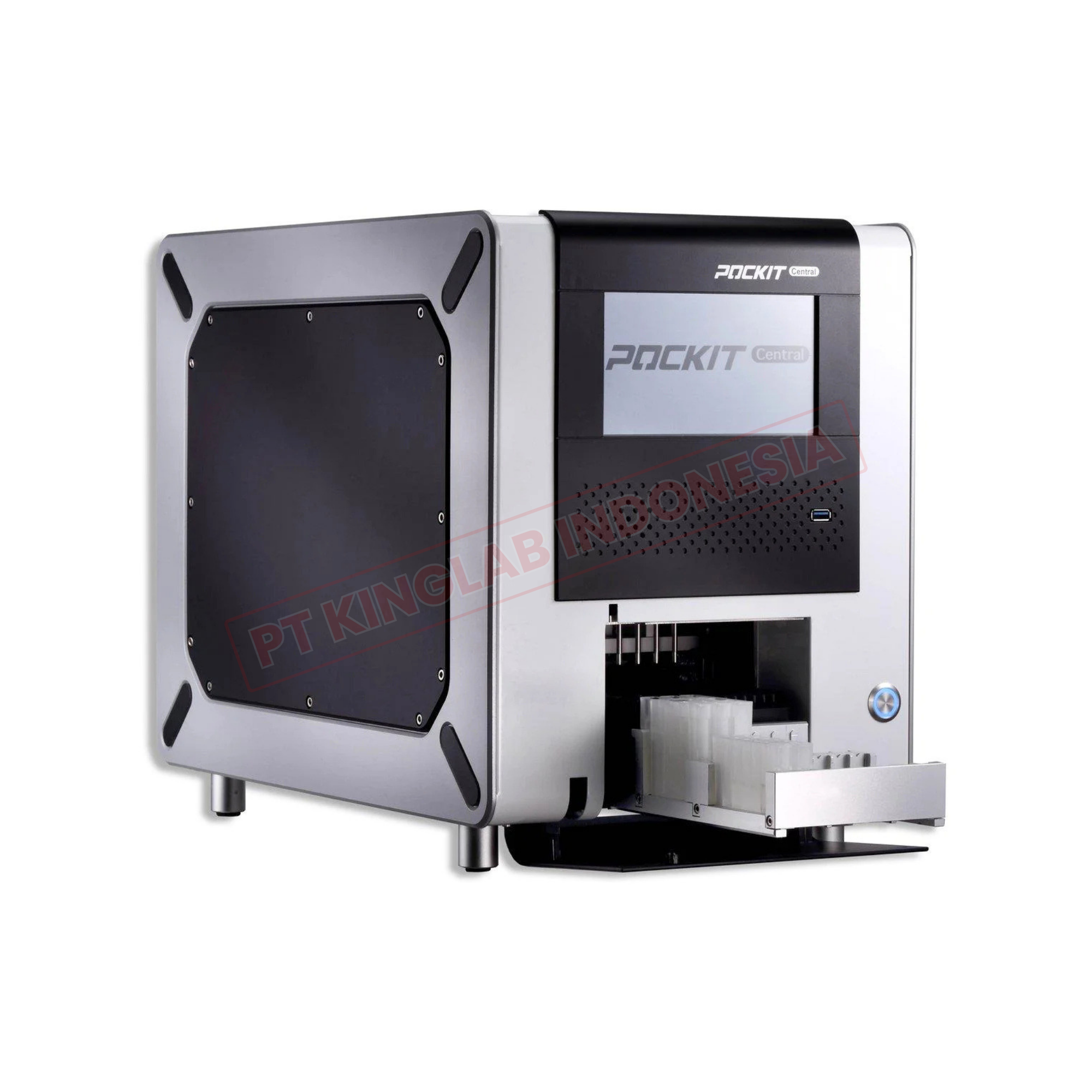

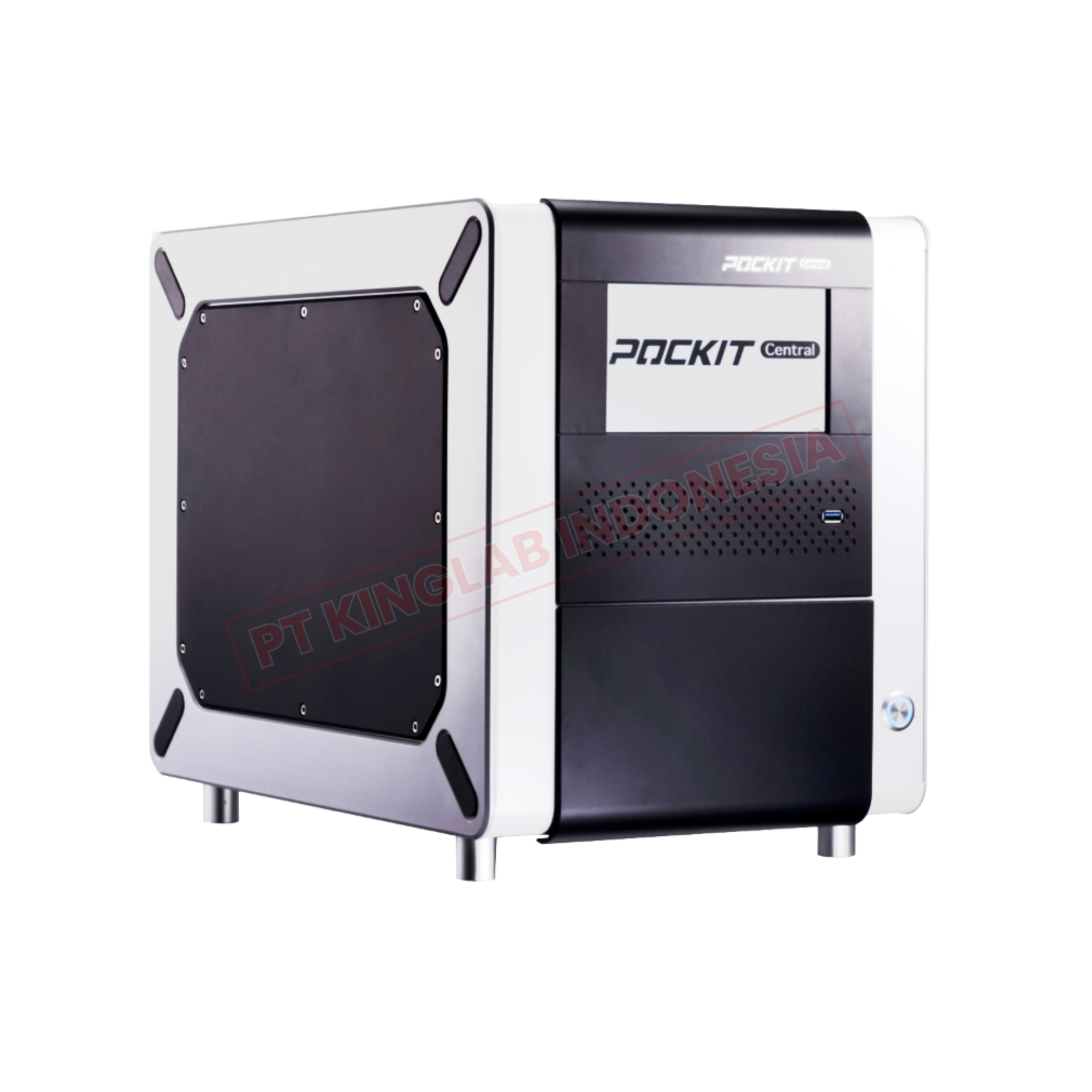

POCKIT™ Central Nucleic Acid Analyzer

POCKIT™ Central offers a cost effective sample-in-answer-out nucleic acid testing system by integrating magnetic bead-based nucleic acid extraction, robotic arm liquid handling, and insulated isothermal PCR (iiPCR) technologies to offer a fully automated molecular detection platform.

• Cost effective

  • Minimal hands-on time
  • Walk-away testing protocols
  • Better workflow management
  • STAT, increasing productivity

• Easy to use

  • Minimal dexterity required
  • Preloaded ready-to-use cartridges
  • Universal pre-programmed protocols
  • Direct display of test results
  • User-friendly touch screen

• Reliable

  • Proven iiPCR technology
  • Precise liquid handling
  • Built-in UV lamp for decontamination
  • Minimal human error and maintenance cost

  SPECIFICATIONS

  POCKIT™ Central Nucleic Acid Analyzer

  PCR Amplification Technology	iiPCR
  Fluorescent Wavelength	520 nm & 550 nm
  Sensitivity	Up to 10 copies per reaction
  Throughput	1 – 8 samples per run
  Reaction Time	Approx. 85 mins
  Monitor	LCD touch control panel
  Dimensions & Weight	310 (W) × 480 (D) × 400 (H) mm, 21 kg
  Operating Temperature	15 – 35°C
  Power Source	100-120/200-240 V AC, 50/60 Hz, 2A
  Data Storage	8 Gb of internal storage
  Warranty Information	1-year limited warranty
  Award	TAIWAN EXCELLENCE 2021
