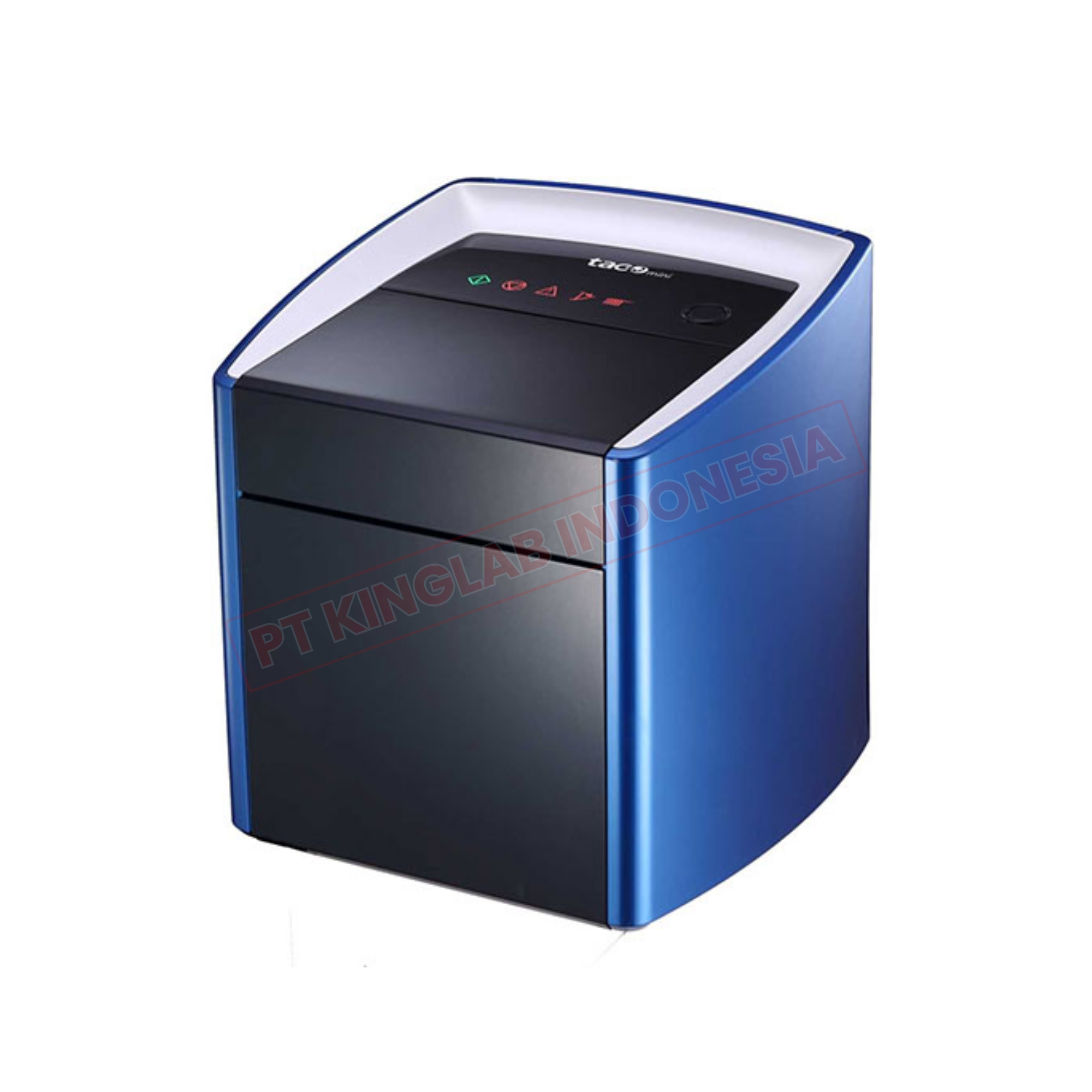

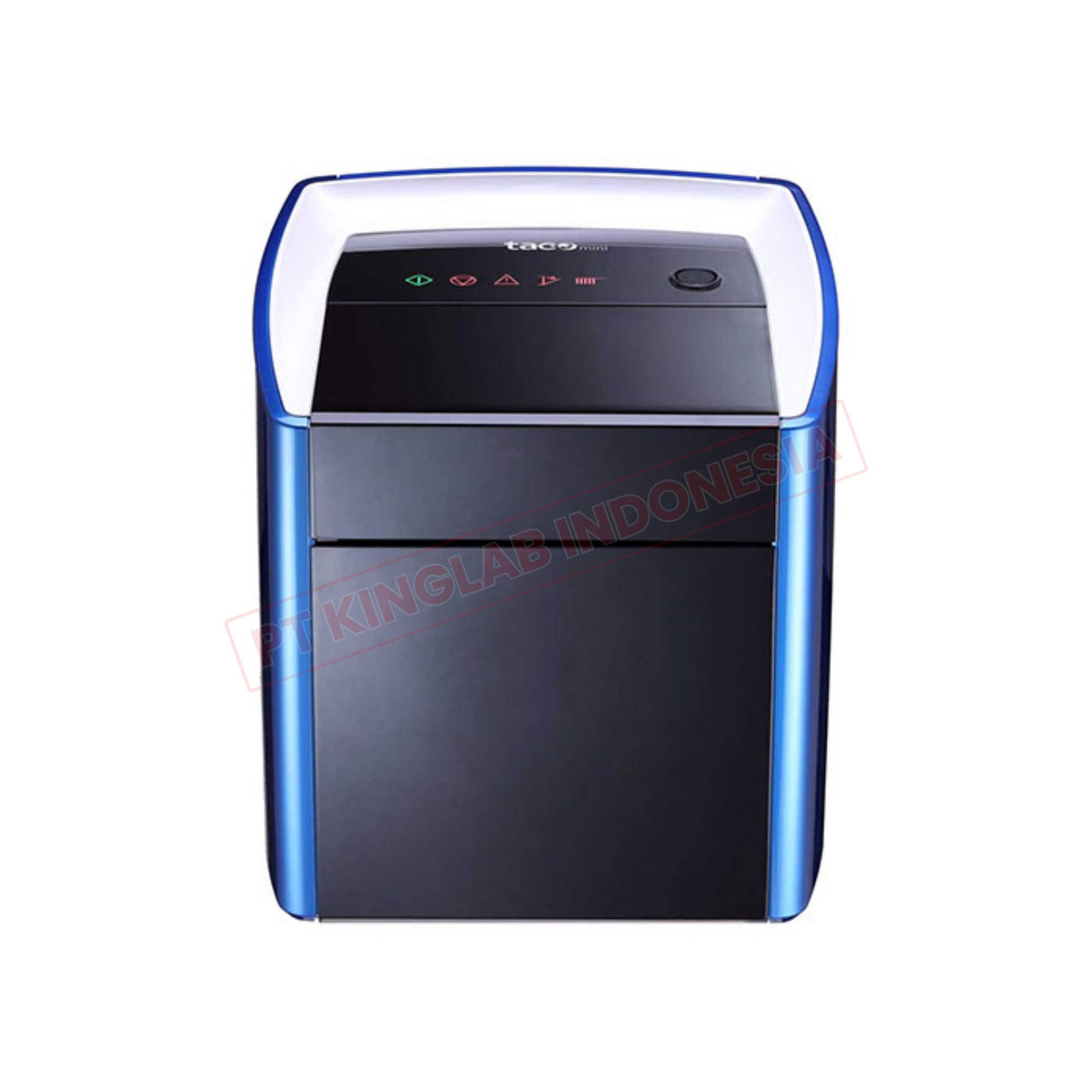

taco™ mini Automatic Nucleic Acid Extraction System
taco™ mini Automatic Nucleic Acid Extraction System applies the advanced magnetic particle transfer technology to purify nucleic acids for up to 8 samples in less than 30 minutes. High-quality nucleic acids extracted from a wide range of sample materials are ready for immediate use in downstream applications.
Compact
• Light weight and small footprint
• Bench top design, portable device
Simple
• One-touch operation
• Pre-programmed protocol
• LED status display
Versatile
taco™ mini can be applied to purify materials such as animal tissues, plant tissues and human specimens (serum, plasma, buffy coat, whole blood, and respiratory swab).
Diversified
Purified DNA/RNA can be used for a wide range of applications, such as molecular diagnostics, genetic identity testing, biomedical researches, and gene expression analysis.
SPECIFICATIONS
taco™ mini Automatic Nucleic Acid Extraction System
| Technology | Magnetic bead separation |
| Run Time | Time Around 30 minutes |
| Throughput | Up to 8 samples |
| Dimensions & Weight | 260 (W) × 265 (D) × 300 (H) mm, 5.5 kg |
| Power Source | 100-120V/200-240V AC, 50/60 Hz, 2A |
| Warranty Information | 1-year limited warranty |
AVAILABLE REAGENTS
| Item | Sample Type | Sample Size | Yield | A 260/280 |
|---|---|---|---|---|
| taco™ Total DNA Extraction Kit | Whole Blood | 200μl | >40 ng/μl | 1.6 ~ 2.0 |
| Shrimp Tissue | 20 mg | >30 ng/μl | 1.6 ~ 2.0 | |
| Mouse Liver / Kidney | 30 mg | >133 ng/μl | 1.6 ~ 2.0 | |
| C6 cell line | 1×106 | >100 ng/μl | 1.6 ~ 2.0 | |
| taco™ DNA/RNA Extraction Kit | Swine Tissue | 30 mg | >80 ng/ul | 1.6 ~ 2.2 |
| Shrimp Tissue | 20 mg | >30 ng/ul | 1.6 ~ 2.2 | |
| Fish Tissue | 20 mg | >20 ng/ul | 1.6 ~ 2.2 | |
| taco™ Plant DNA/RNA Extraction Kit | Orchid Leaves | 100 mg | >25 ng/μl | 1.6 ~ 2.2 |
| Rice Leaves | 50 mg | >100 ng/μl | 1.6 ~ 2.2 | |
| Papaya Leaves | 50 mg | >100 ng/μl | 1.6 ~ 2.2 | |
| taco™ Preloaded DNA/RNA Extraction Kit | Performance data is the same with taco™ DNA/RNA Extraction Kit | |||
